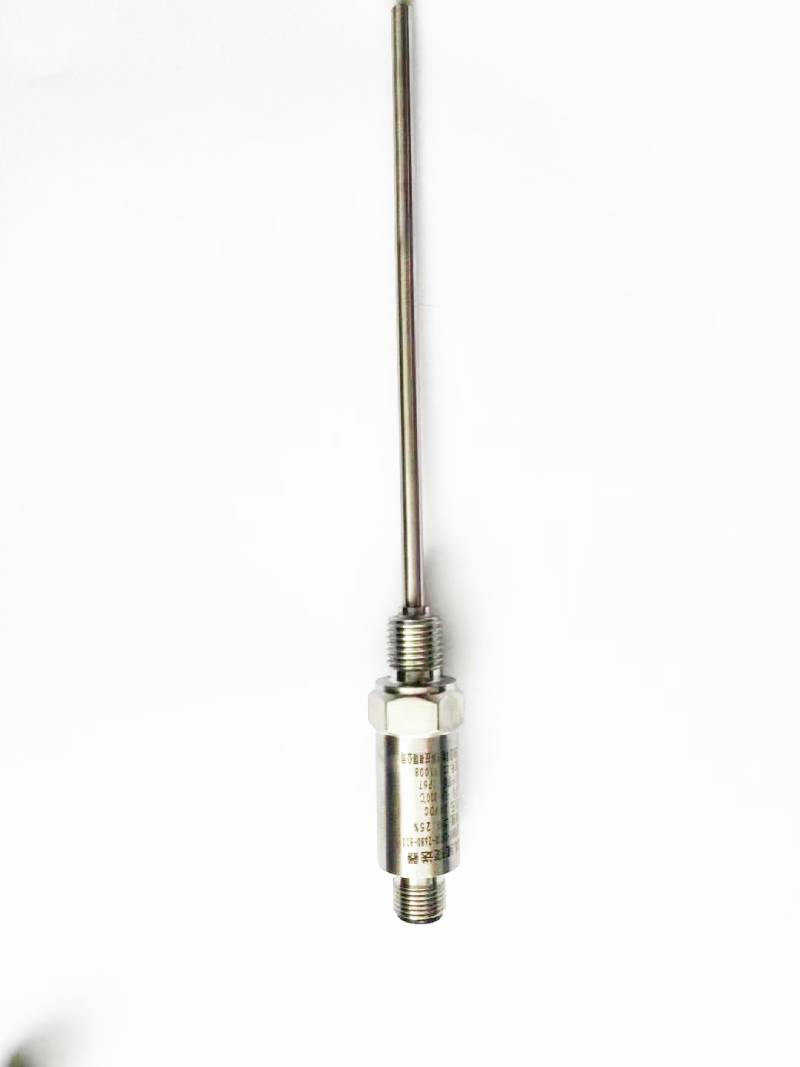

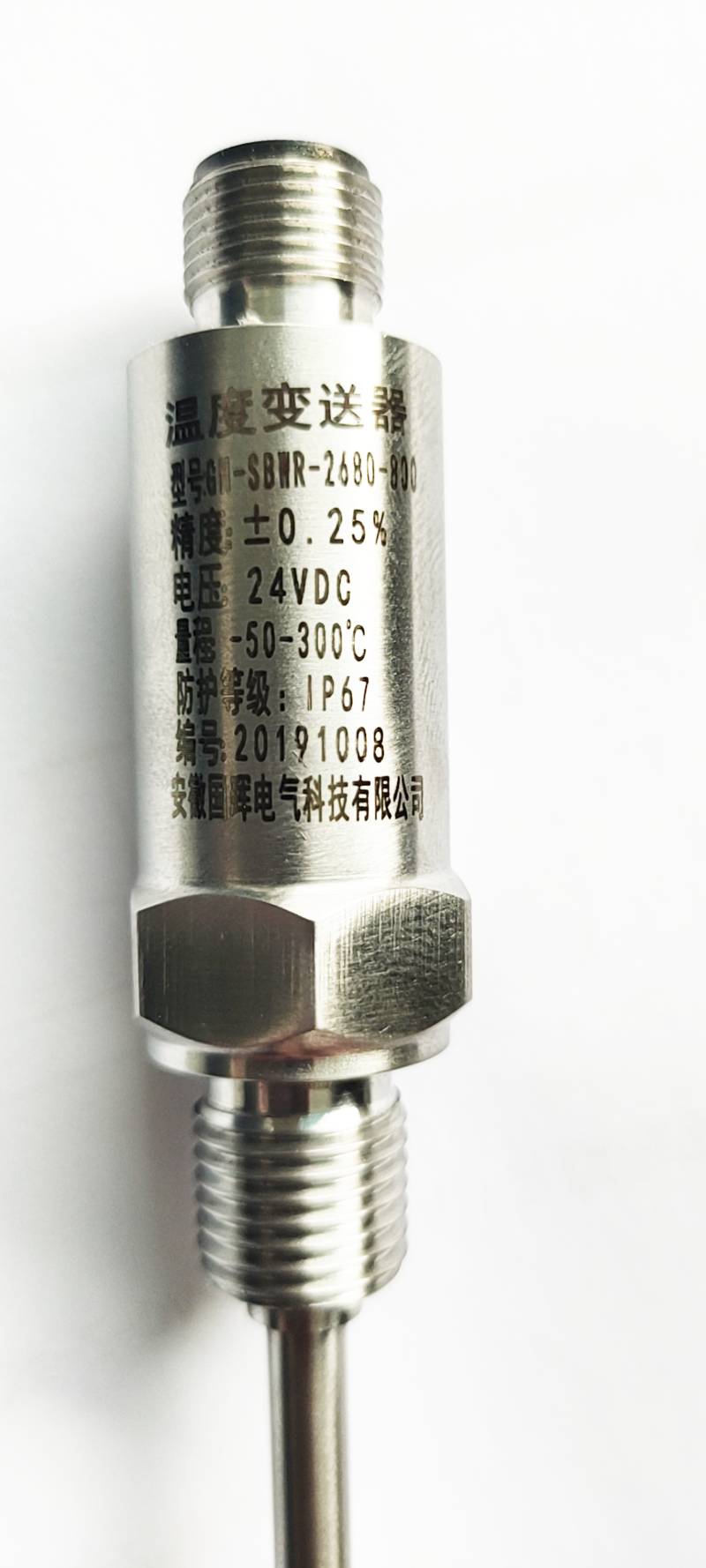

Temperature transmitter

Temperature transmitter diagram class

Structural process

Signal process: M12*1-4M connector applicable standard: DIN EN61076-2-101

Process interface: G A-EL sealing gasket: PTFE 14*18.6*1.5

Contact with medium: 316L

Probe rod size: 5mm

Structure length: EL+63mm (EL can be customized)

Sealing process: laser welding

Use environment

Application range with 316L contact material non-reactive liquid and gas

Compressive strength (bar) *** maximum 300bar

Electrical data

Working voltage [V] DC24V

Protection level IP67

Signal output according to DIN EN 60751, Class A 1/3B

Short circuit protection is

Sensor pt100

Measure/set the range

Measuring range -50~120℃

Resolution 0.05

Analog output 4~20Ma 24V loop DC24V+(1#) DC24V-(2#)

Accuracy/deviation

The measurement accuracy is ±0.25%MS

Temperature drift 0.08% annual percentage

Sensor deviation 0.05% (ISO90T)

Reaction time

The reaction time is 0.1~0.5S

Environmental conditions

The ambient temperature is -45 ° C to 150 ° C

Storage temperature -45~150℃

Case protection class IP67

Certification/testing

Electromagnetic compatibility

Seismic HV.4~6 natural frequency 500HZ 2 weeks

Mechanical vibration 200g (20~5000HZ)

Installation and maintenance precautions

1. Before installation, please check whether the model, range and working power supply marked on the label are consistent with the site. Power supply should adopt stable voltage regulator source.

2, This product is installed on the pipe (or container wall) without the installation of support.

3, when the medium is corrosive gas (or liquid), special requirements, can be processed according to special technology production, in order to meet the different needs of users.

4, it is recommended that after long-term use to the relevant measurement department calibration, non-professional personnel shall not be randomly disassembled or disintegrated, so as to avoid damage.

Installation accessories brief (included)

1. Product, gasket, installation base, and 5m special shielded copper carrier low impedance signal cable.

2. If you have special needs, please communicate with technical personnel when ordering.

3, special conditions need to be customized, please also communicate with technical personnel.

4, installation tools: open wrench or the same function applicable tools.

5. According to the force of the matrix, it is recommended to leave 1.5mm thickness of the gasket or according to experience.

Electrical connection

Pin M2 connector; Contact resistance ≤0.017Ω

Socket sleeve M2 connector; Contact resistance ≤0.017Ω

The standard applies to DINEN61076-2-101

Nuts brass nickel plated

Insulator PA66 enhanced flame retardant

The temperature ranges from -45 to 150℃

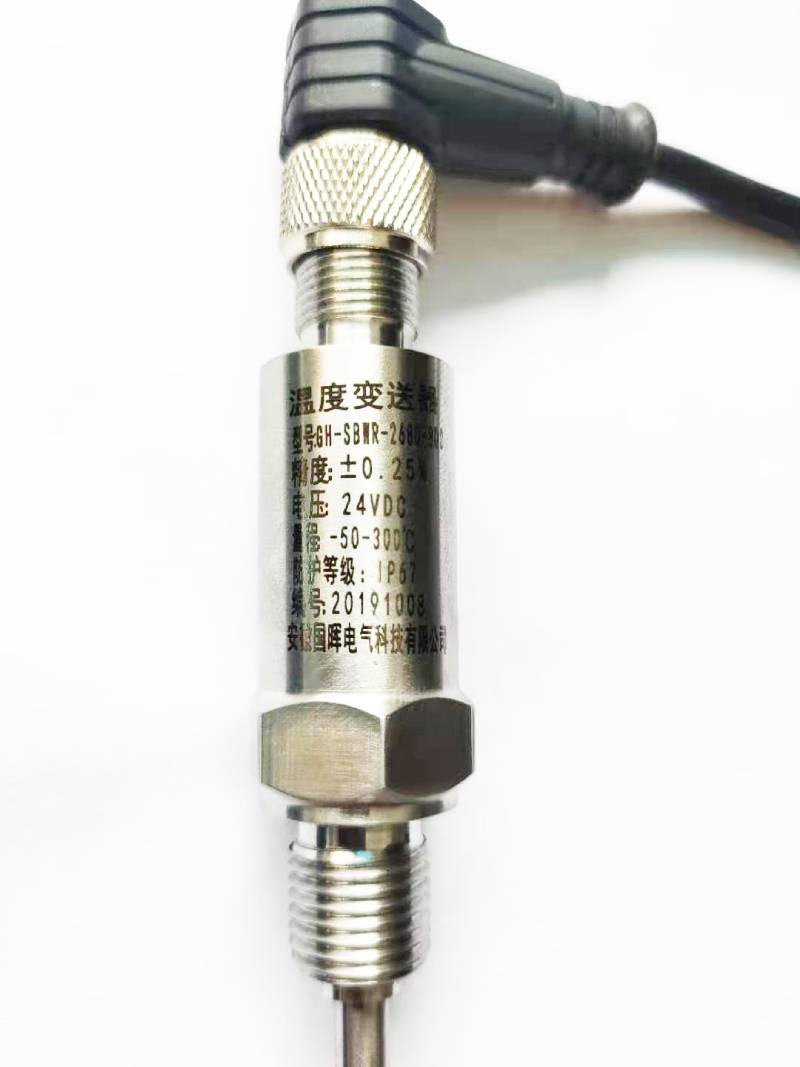

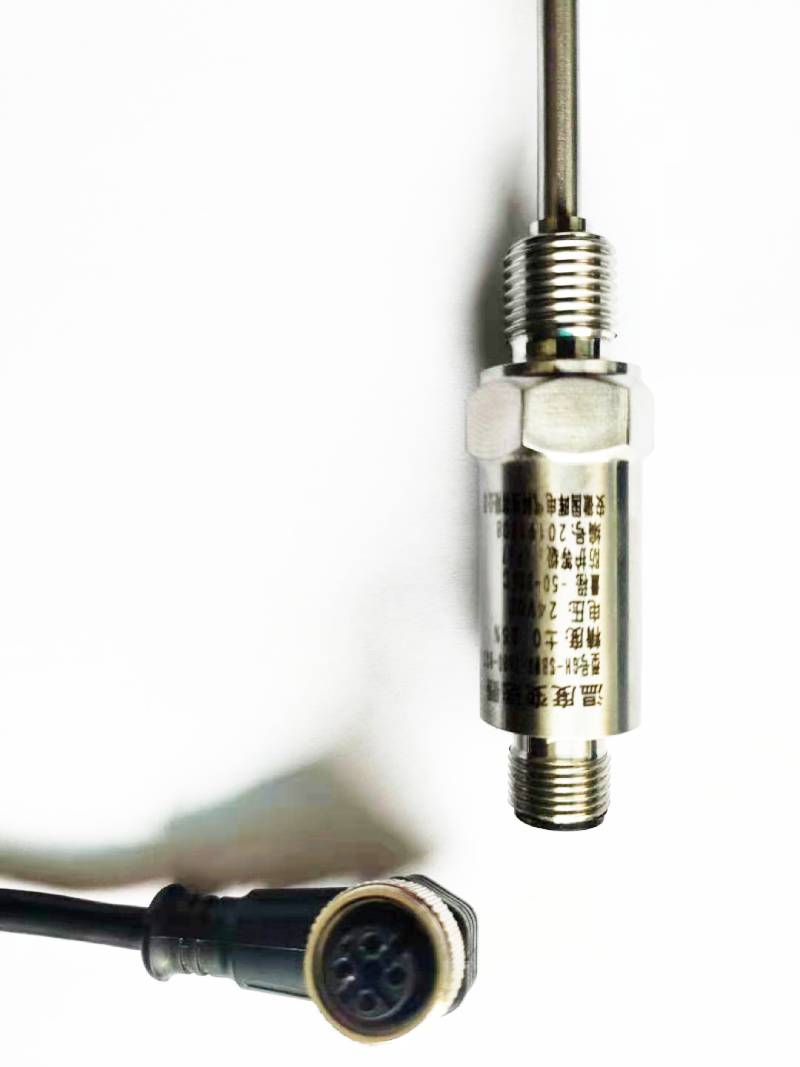

Matching connector

Connection pressing mode: thread

Applicable cable: 4-6mm

Contact material: copper plated

Insulator: PA66 enhanced flame retardant

Protection level: IP67

Lead length L is customizable

直母连接型号：               弯母连接型号：

M12针端图类示意             孔端图类示意

M12脚线序表-传感器       M12脚线序表-航空插头   有效接线回路

1#-棕色                   1#-棕色                 DC24V+

2#-                      2#-                     DC24V-

3#-蓝色                  3#=蓝色

4#-                      4#-
