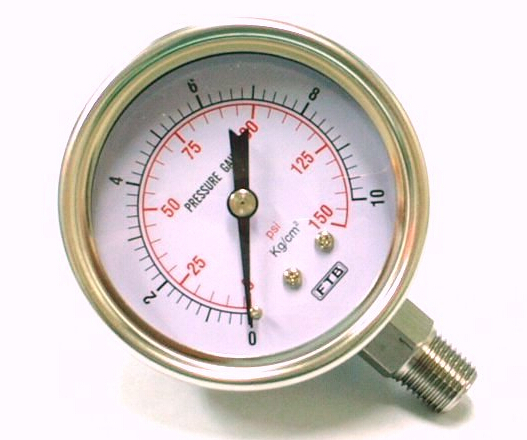

Oil-filled pressure gauge
- Tel：0550-7516155
- Fax：0550-7513155
- Email：ghdq@ghdqkj.com
Description
Product description: Shockproof pressure gauge is mainly used for pressure detection in metallurgy, electric power, petroleum, chemical, light industry, machinery and other industrial sectors. Pressure gauges rely on internal flushing damping oil and supporting buffer devices. It has good seismic resistance. It is suitable for the occasion where the pressure of the measured medium has strong pulse change or pressure impact and often sudden unloading in the production process, as well as the place with large environmental vibration. The instrument can measure the average value of gas and liquid pulsating pressure, so as to overcome the damage caused by the intense pulse of the medium and the environment vibration to the instrument and ensure the accuracy of the reading. The case of the stainless steel shockproof pressure gauge is made of stainless steel material (referred to as semi-steel), which can be used in corrosive, large vibration environment. Specification and model
Model number | Structural pattern | Scale range (MPa) | Accuracy class |
YTN-60 | radial |
0 ~ 0.1; O ~ O.16; 0 ~ 0.25; 0 ~ 0.4; 0 ~ 0.6; O ~ 1; 0 ~ 1.6; 0 ~ 2.5; O ~ 4; O ~ 6; O ~ 10; O ~ 16; 0 ~ 25; 0 ~ 40 |
2.5 |
YTN-60ZT | Axial band edge | ||
YTN-60B | radial | ||
YTN-63B | Axial band edge | ||
YTN-100 | radial | 0 ~ 0.1; O ~ O.16; 0 ~ 0.25; 0 ~ 0.4; 0 ~ 0.6; O ~ 1; 0 ~ 1.6; 0 ~ 2.5; O ~ 4; O ~ 6; O ~ 10; O ~ 16; 0 ~ 25; 0 ~ 40; 0 ~ 60 |
1.6 |
YTN-100ZT | Axial band edge | ||
YTN-100B | radial | ||
YTN-103B | Axial band edge | ||
YTN-150 | radial |
0 ~ 0.4; 0 ~ 0.6; O ~ 1; 0 ~ 1.6; 0 ~ 2.5; O ~ 4; O ~ 6; O ~ 10; 0 ~ 16; 0 ~ 25; 0 ~ 40; 0 ~ 60; 0 to 100 | |
YTN-150ZT | Axial band edge | ||
YTN-150B | radial | ||
YTN-153B | Axial band edge |
