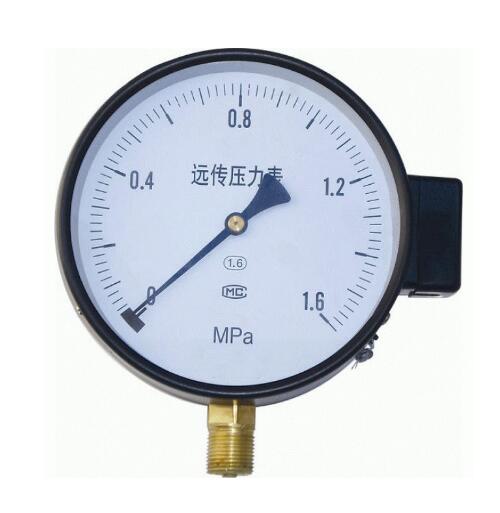

Resistance remote pressure gauge
- Tel：0550-7516155
- Fax：0550-7513155
- Email：ghdq@ghdqkj.com
Description
Product description: Resistance remote pressure gauge is suitable for measuring the pressure of liquid, steam, gas and other media which are not corrosive to copper and copper alloys. Because in the instrument is set inside the slide line resistance transmitter, help can reverse measured value to power transmission away from the measuring point of the secondary instrument, to achieve centralized detection and remote control. In addition, the instrument can also indicate pressure in place to facilitate field process inspection. Specification parameter
Precision class | Sender starting resistance (Ω) | Transmitter full resistance (Ω) | Operating environment condition | Temperature effect | Measuring range |
1.6 | 3 ~ 20 | 340 ~ 400 | -40 ~ +60℃; The relative humidity is not more than 85%, and the vibration and the sharp pulsation of the measured (controlled) medium have no obvious effect on the work of the instrument. | When the operating temperature deviates from 20±5℃, the additional error of temperature is not more than 0.4% /10℃ | 0 ~ 0.1, 0 ~ 0.16, 0 ~ 0.25, 0 ~ 0.4, 0 ~ 0.6, 0 ~ 1, 0 ~ 1.6, 0 ~ 2.5, 0, 0 ~ 4 ~ 6, 0 ~ 10, 0 ~ 16, 0, 0 ~ 25 ~ 40, 0 ~ 60, 0.1 ~ 0, 0.1 ~ 0.15, 0.1 ~ 0.3, 0.1 ~ 0.5, 0.1 ~ 0.9,-0.1 ~ 1.5,-0.1 ~ 2 |
