Description
Structural form
| Application specification |
| 1. Design and manufacture: |
| According to ANSI B16.34; API 602 |
| 2. Size of connecting end: |
| Press ANSI B16.10 |
| 3. Connection flange size: |
| Press ANSI B16.10 |
| 4. Connecting valve inspection and experiment: |
| Press API 598 |
| 5. Structural characteristics: B.B:OS&Y or W.B; OS&Y |
| 6. Materials: according to AISI/ASTM regulations |
| 6. Main material |
| A105; F5 F22; 304; 304L; FL2 etc |

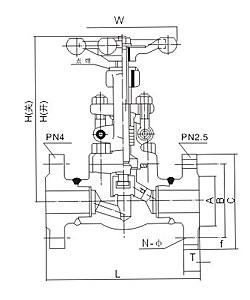

| Main size and weight |
| Lattice DN | L | H(open) | W | G | A | B | C | T | f | N - Ф | Weight (kg) | ||
| English system (in) | Metric system | B.B | W.B | ||||||||||
| 15 | 216 | 207 | 100 | 39.67 | 60.5 | 82.5 | 120 | 22.5 | 6.4 | 7.4 | 8 | ||
| 20 | 229 | 207 | 100 | 44.45 | 66.5 | 89 | 130 | 25.5 | 6.4 | 12.5 | 13.2 | ||
| 25 | 254 | 240 | 125 | 50.8 | 71.5 | 101.5 | 150 | 29.5 | 6.4 | 16.0 | 17.4 | ||
| 32 | 279 | 258 | 160 | 60.32 | 81.5 | 111.1 | 159 | 29.5 | 6.4 | 17.2 | 19.0 | ||
| 40 | 305 | 290 | 160 | 68.28 | 92.0 | 124 | 180 | 32 | 6.4 | 23.0 | 24.5 | ||
| 50 | 368 | 337 | 180 | 95.25 | 124.0 | 165.1 | 216 | 38.5 | 7.9 | 29.8 | 31.0 | ||
