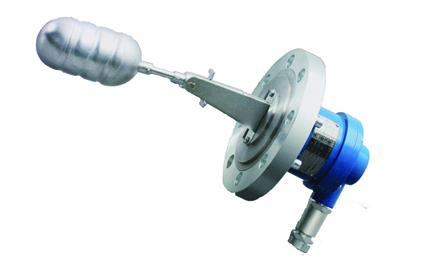

UQK series float level controller is suitable for industrial process of open or pressure vessel level control. When the liquid level is in the high or low limit, the switch action sends an alarm

Signal or control pump, valve opening and closing.

UQK Series float level controller structure principle:

The float level controller consists of two non-communicating measuring parts and output parts. When the measured liquid level changes, the float changes with it. So that the end of the magnetic steel up and down swing.

Main technical parameters:

Working pressure :1.6MPa standard type; 4.0MPa Special type.

Operating temperature: -40~150℃.

Medium density: ≥0.65g/cm3

Contact capacity: AC220V 3A

Material: liquid part 1Cr18Ni9Ti, explosion-proof shell ZL104 paint spraying.
