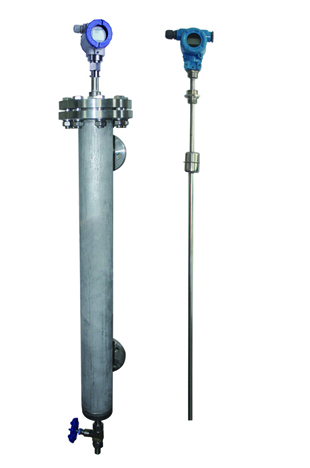

Float liquid level transmitter is suitable for liquid, gas and other media measurement, suitable for a variety of occasions. UQD-91 series floating ball type liquid level meter is used to convert the liquid level signal into 4 ~ 20mA continuous current signal or resistance signal, which is connected to the secondary display instrument or control room through the cable for centralized indication and observation.

· The measuring range can be made according to the actual requirements of users (more than 2M needs to be customized);

· The indicating mechanism is completely isolated from the measured medium, with good sealing and safe use;

· Simple structure, convenient installation and low maintenance cost;

· A variety of materials can be selected, suitable for a variety of occasions;

· High temperature resistance, up to 280℃, and suitable for a variety of corrosive media (need to be customized).

Technical index:

Total length of transmitter: ≤6000mm

Measuring range: H≤5500mm

Installation height: L≤5700mm L-H≥200mm stainless steel guide rod transmitter total length greater than 6000mm can be piecewise supply.

Ball diameter: 75mm

Transmitter accuracy: ±1.5%(measuring height H > 1000 mm) ±2.5%(measuring height 500 mm≤H≤1000 mm).

Transmitter power supply: 24VDC (4-20mA two-wire system)

Output load: 0 to 500Ω

Junction box housing protection: IP65

Measuring medium temperature: normal temperature (-20 ~ 80℃)
