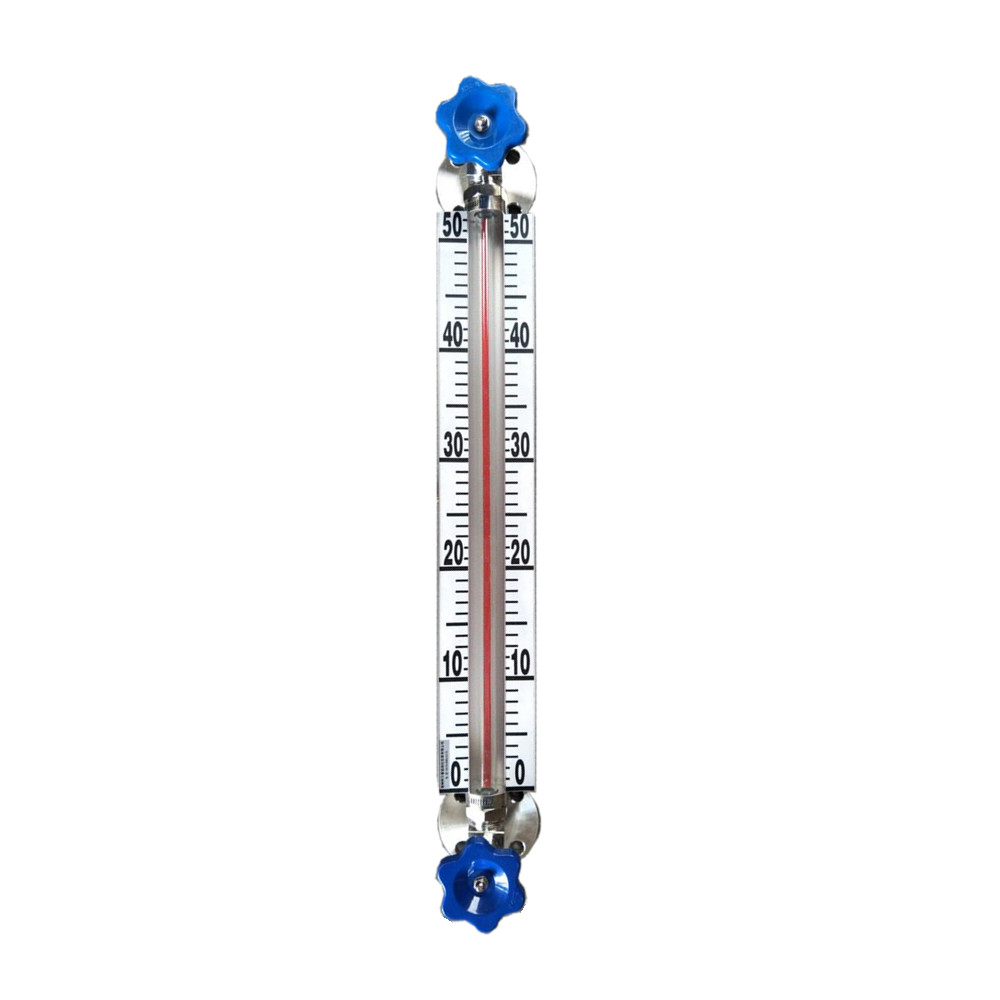

Product Description: HG5 type glass tube liquid level gauge is a local type liquid level measurement, it is mainly used to directly indicate the height of the medium liquid level in various tanks, towers, tanks, boxes and other containers.

Instrument upper and lower valves are equipped with PN1.6MPa, DN20 flange, through the flange on the container, and the container to form a communication device, through the glass tube can be directly read the height of the medium liquid level in the container. The instrument is equipped with a needle valve at both ends, and the needle valve is equipped with a steel ball. When the glass is broken due to an accident, the steel ball automatically closes the needle valve channel under the action of the pressure of the container to prevent the outflow of the medium in the container.

Technical parameter

Measuring range (installation center distance L) : 3005008001100120014001700 mm

Working pressure: < = 1.6MPa

Material: carbon steel, stainless steel

Operating temperature: < = 200 degrees Celsius

Ball self-sealing pressure: greater than 0.2MPa

Connection flange standard: HGJ46-91PN1.6DN20 convex flange

Other flange standards such as JB/T, GB, ANSI, etc., please specify by the design department or user.

Tracing steam pressure: < = 0.6MPa

Steam jacket connector: G1/1" external thread

Installation center distance L and scale L1 relationship
